HOME / CAPABILITIES
Modern CNC equipment, programmed in house up to 5-axis.
Our machines, software, materials and quality checks, in one place, so you can tell at a glance whether your part fits.
27.5" × 52.5"largest part machined in house
5-axissimultaneous machining
8 µmtightest production tolerance
3 toncrane capacity for dies and die sets
Equipment
Machine list and travels
| MACHINE | TYPE | TRAVELS (X × Y × Z) | USED FOR |
|---|---|---|---|
| Mazak VARIAXIS 630-5X II | 5-axis machining center | 24.8" × 30.1" × 20.1" | Twin pallet, 80-tool ATC, A-axis −120° to +30°, C-axis 360°. Contoured and Class A surfaces, multi-face parts. |

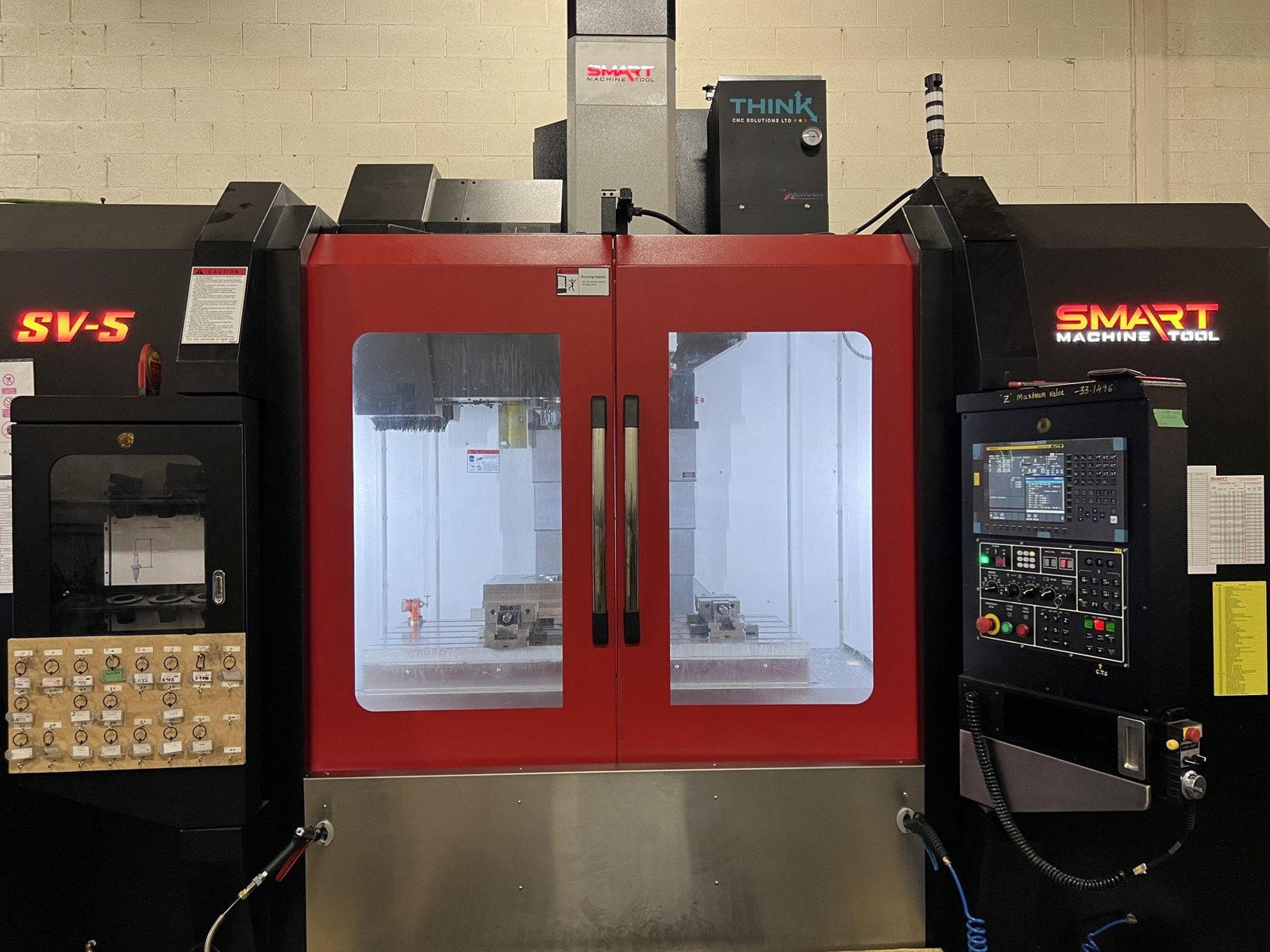

| SMART VMC SV5 | Vertical machining center | 51.18" × 27.56" × 27.56" | Large plates, blocks, die shoes and fixture bases up to 27.5" × 52.5". |
| Hyundai WIA F500+ | 4-axis vertical machining center | 41.7" × 20.4" × 25.1" | 10" 4th-axis rotary table for multi-side parts and complex hole patterns. |
| Daewoo DMV3016 | 3-axis vertical machining center | 32.2" × 16.1" × 20.1" | Punches, die sections, sub plates, strippers and precision details. |
| Fortune Vturn-26 | CNC turning center | Ø14.5" × 24" between centers | 3.38" spindle bore. Pilots, guide posts, bushings, shafts and turned parts. |
| Charmilles Robofil 230F | CNC Wire EDM | 12.8" × 8.6" × 8.0" | Precision profiles and fine internal details in hardened steel. |
| Conventional equipment | Manual machines | — | Manual mills and lathe, surface grinders and radial drill for fitting and support work. |
| Cranes | Material handling | 3 ton / 500 lb | 3-ton A-frame crane for dies and die sets, 500 lb zip crane for plates and details. |
Engineering & software
Designed and programmed by the people who build it.
- 3D die design, strip layout and full 2D detailing
- CAM programming for 3-, 4- and 5-axis milling
- Reverse engineering from scan data or sample parts
- Springback and sink compensation on rebuilt details
- We accept STEP, IGES, Parasolid, DWG/DXF and PDF
Quality
Built to the current drawing and revision.
- First article, in-process and final inspection
- Revision control and material traceability when required
- Surfaces checked against your CAD and scan data
- Calibrated gauges; CMM through qualified partners when specified
- Inspection reports available on request
Materials
Materials we machine every week
Tool steels
Hardened and pre-hard tool steels, including hard milling after heat treat.
Mould steels & bronze
P20 and AMPCO for cavities, slides and inserts.
Sheet for dies
Steel, HSLA, coated steel, 304L stainless and aluminum from 1.5 to 6 mm.
Non-ferrous & plastics
Aluminum, brass, Delrin and other engineering plastics.
