Progressive dies, trim dies and moulds, designed and built in house.

We design, build and refurbish progressive, piercing and trim dies and moulds, and machine precision components from prototype to repeat production.

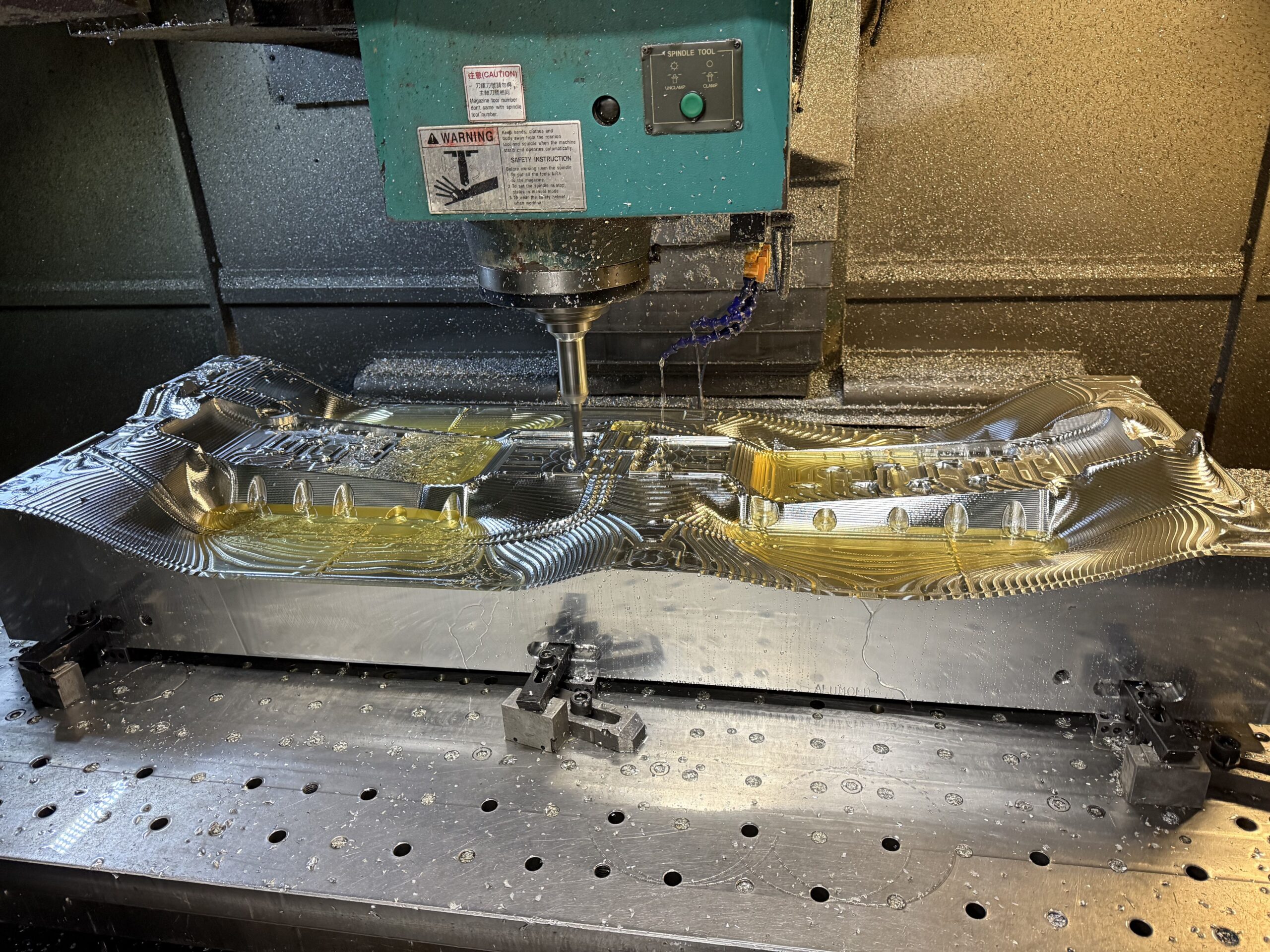

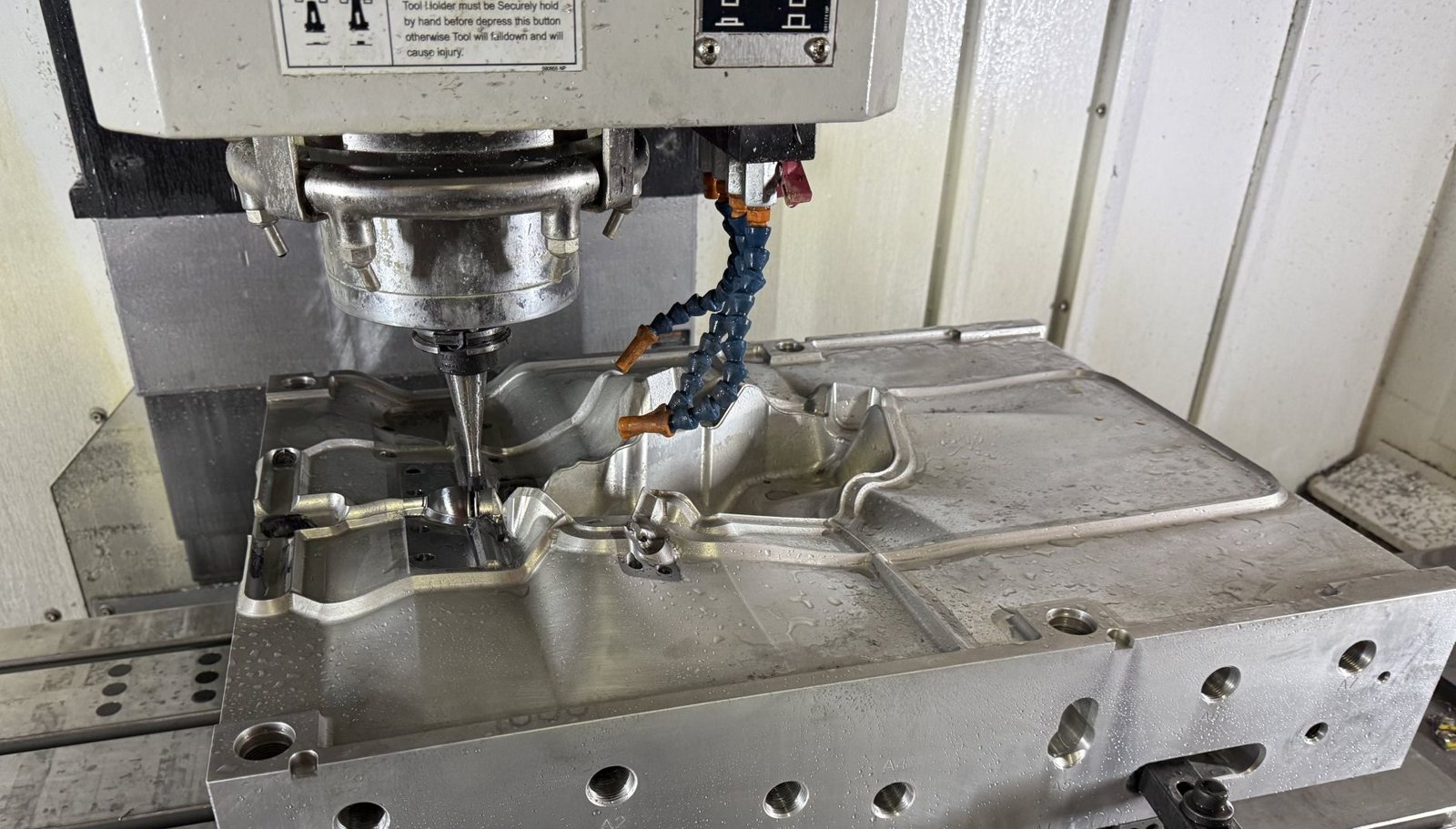

Mould cavity being machined on the SMART vertical machining center
24stations on progressive dies, 1-up and 2-up
102"longest die built, a hydro-punching die
16+ yrsin business, led by toolmakers with 25+ years on the floor
8 µmtolerances on high-precision batch parts
5-axismachining for contoured and Class A surfaces
3 shiftsper day when your schedule needs it
LIVE FROM THE SHOP FLOOR

Machined in house, around the clock when you need it.

Mould cavities, die sections and production parts are cut on our own machines and checked before they leave the shop.

What we do

Dies, moulds and precision machining under one roof.

All services →

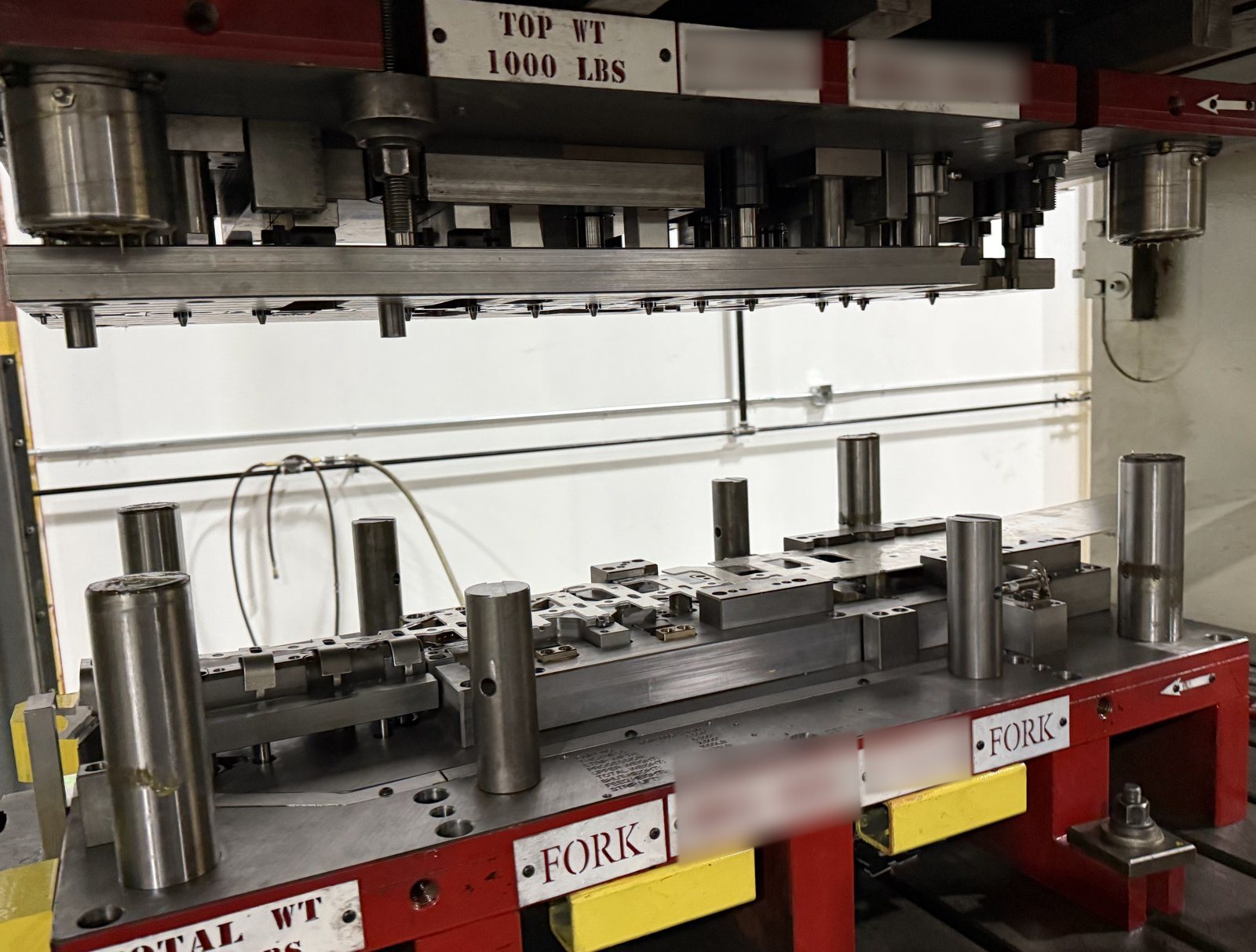

Progressive die set in the press, ready for tryout

Progressive Dies

Turnkey progressive dies, 1-up and 2-up, 10 to 24 stations, for steel, HSLA, coated steel, 304L stainless and aluminum from 1.5 to 6 mm.

Learn more →

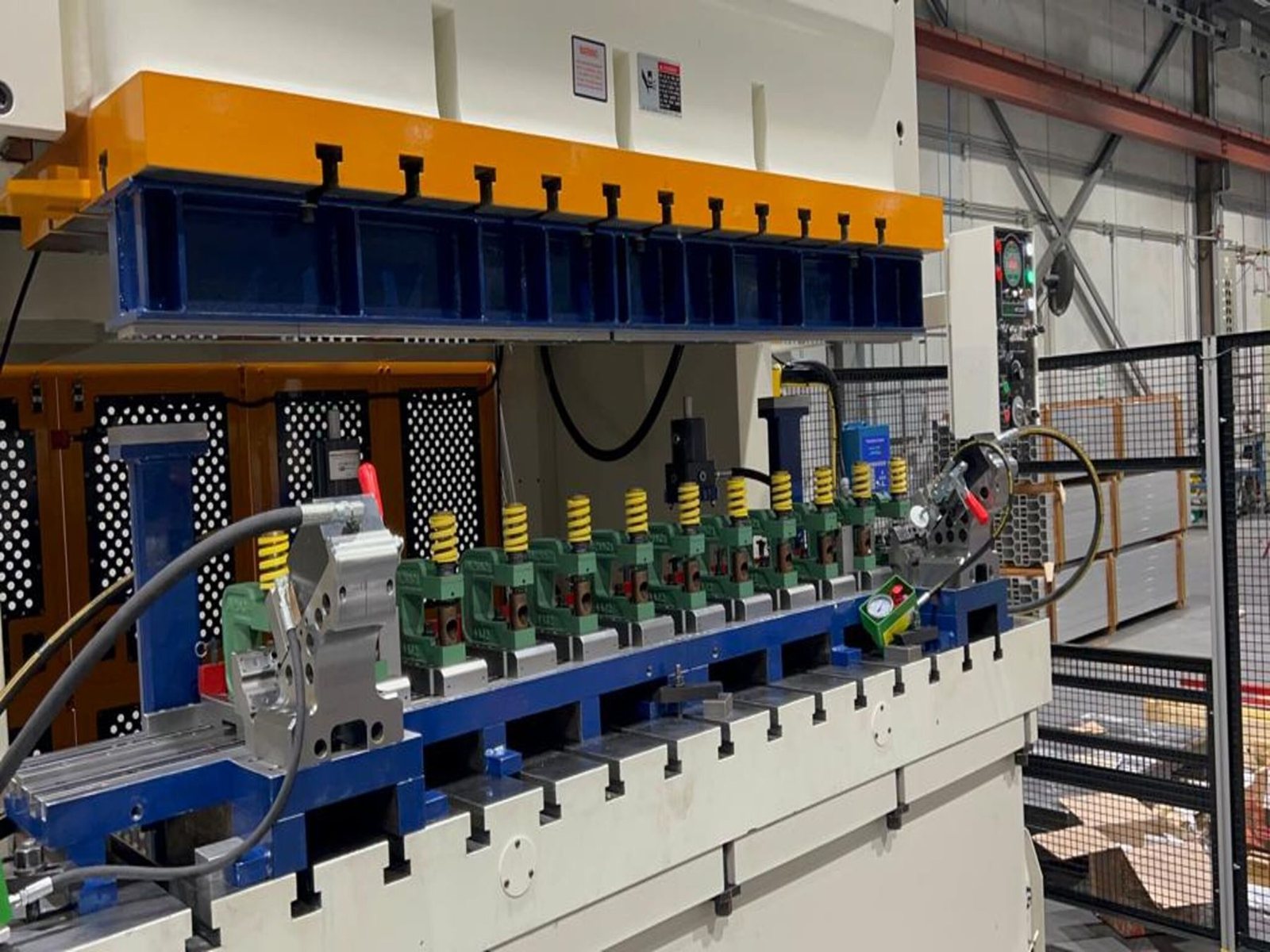

Multi-station punching die for long aluminum profiles in a press

Piercing & Punching Dies

Multi-hole piercing, cam-pierce and hydro-punching dies with hydro-cam units for aluminum extrusions and tubes, up to 102" long.

Learn more →

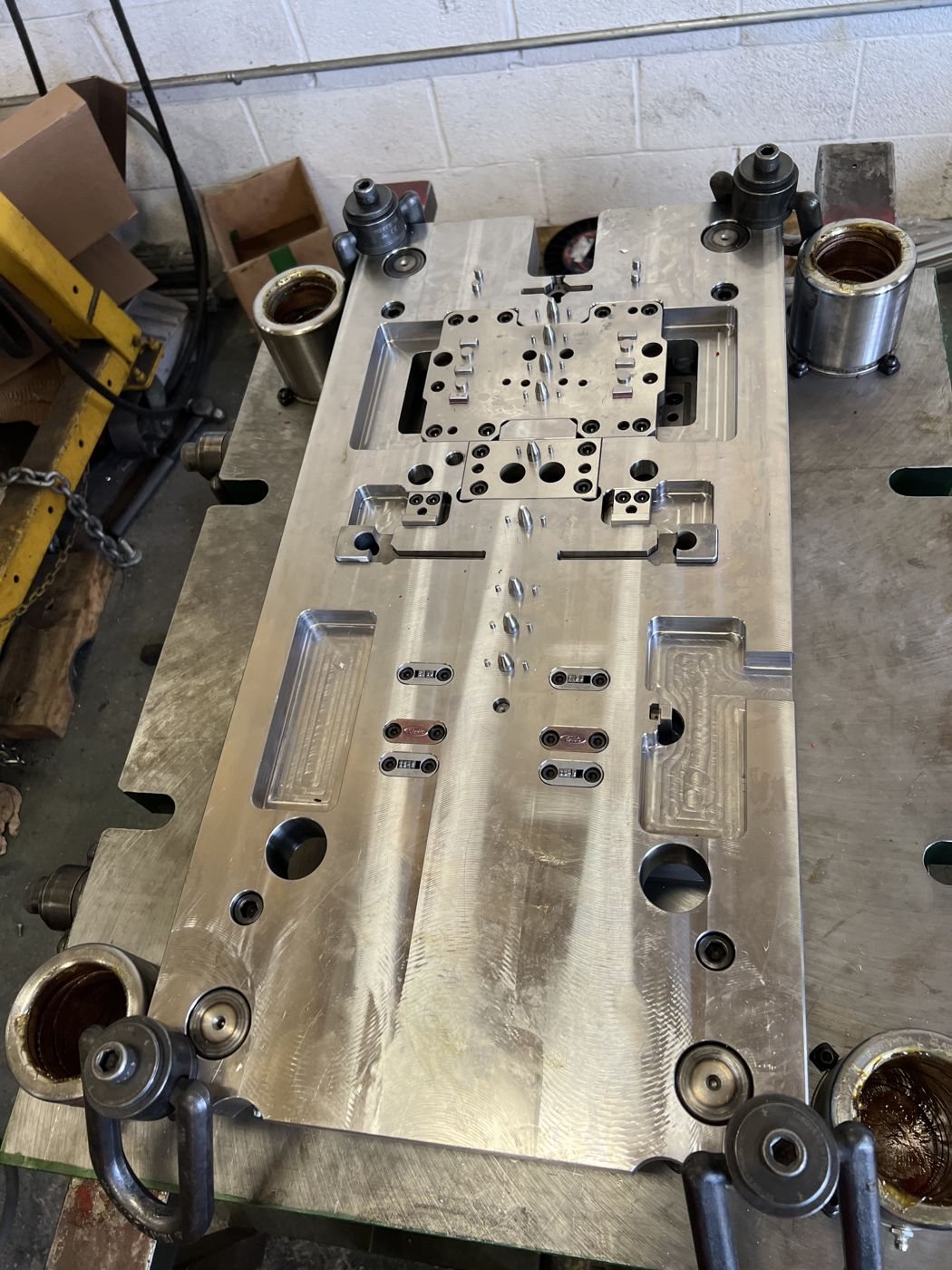

Lower die opened up on the bench for rebuild

Die Refurbishment & Reverse Engineering

Full die rebuilds, with worn punches, pads and details rebuilt as CAD from scan data and compensated for sink and springback, plus engineering changes and new inserts.

Learn more →

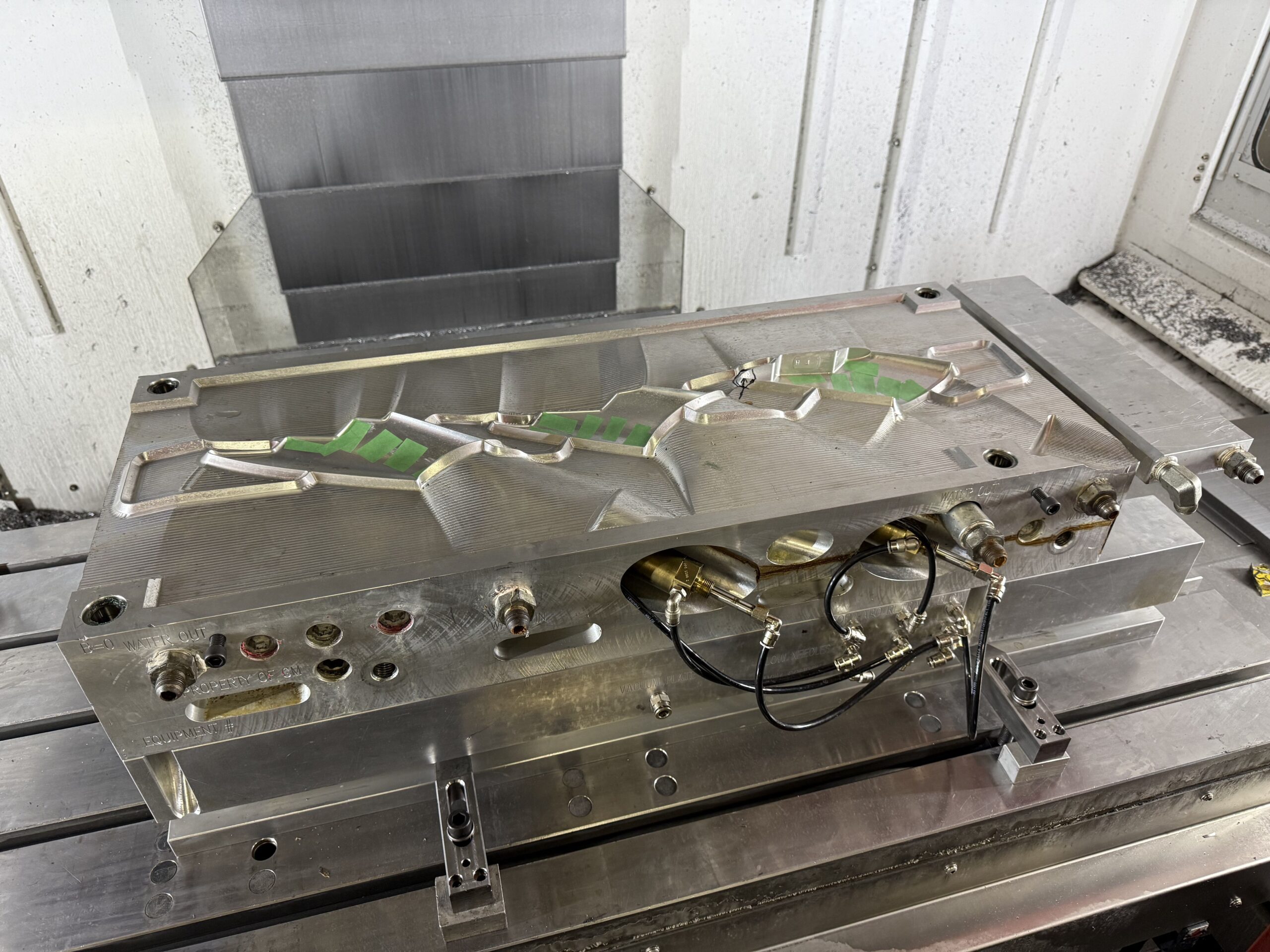

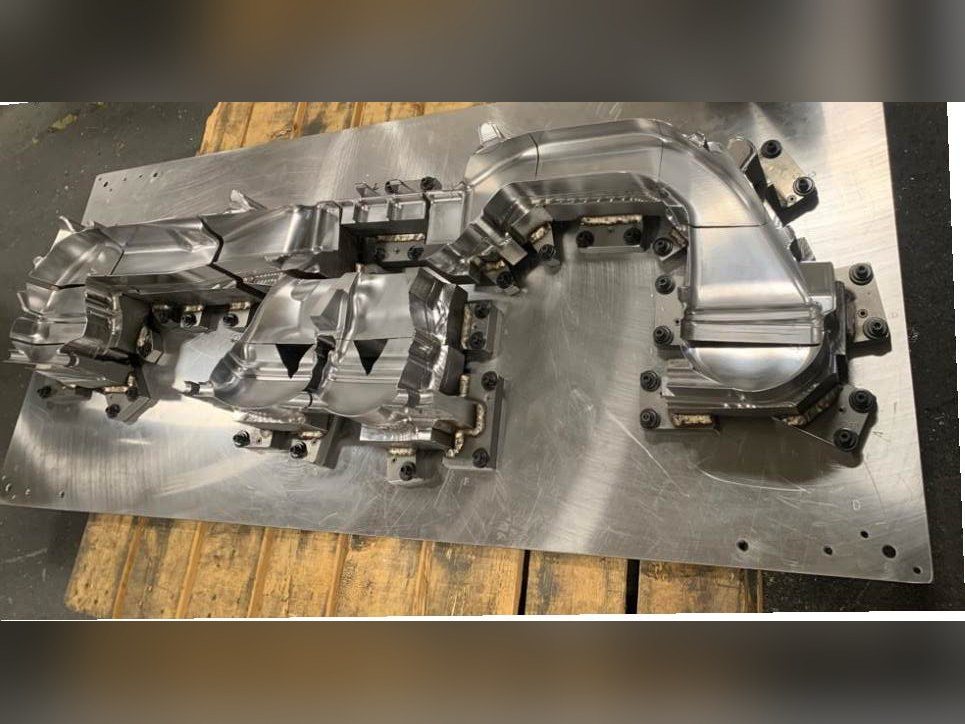

Cross car duct trim nest machined from P20, full view

Trim Dies

Nest and punch halves laid out, 3D CNC machined and assembled from your files, including repeat trim die programs and cut-off sections.

Learn more →

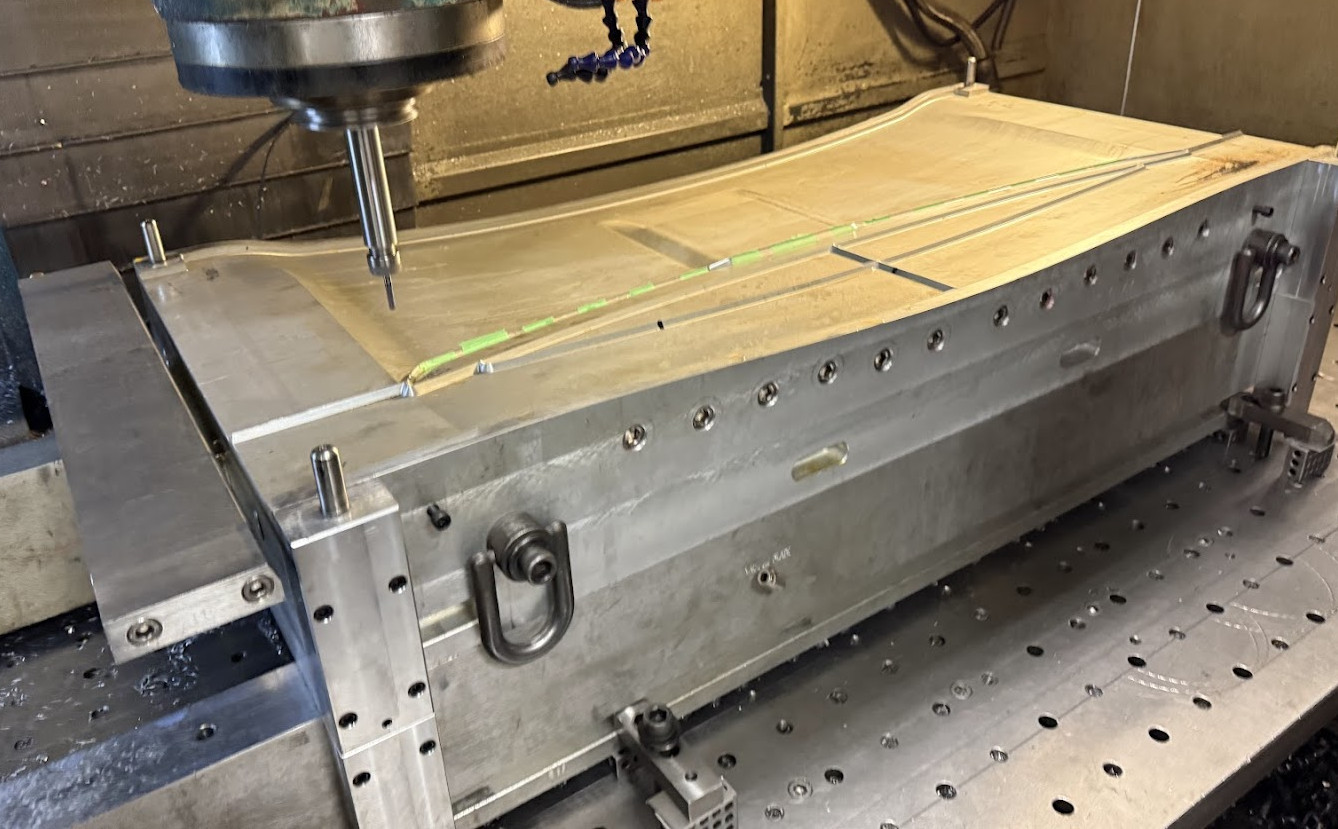

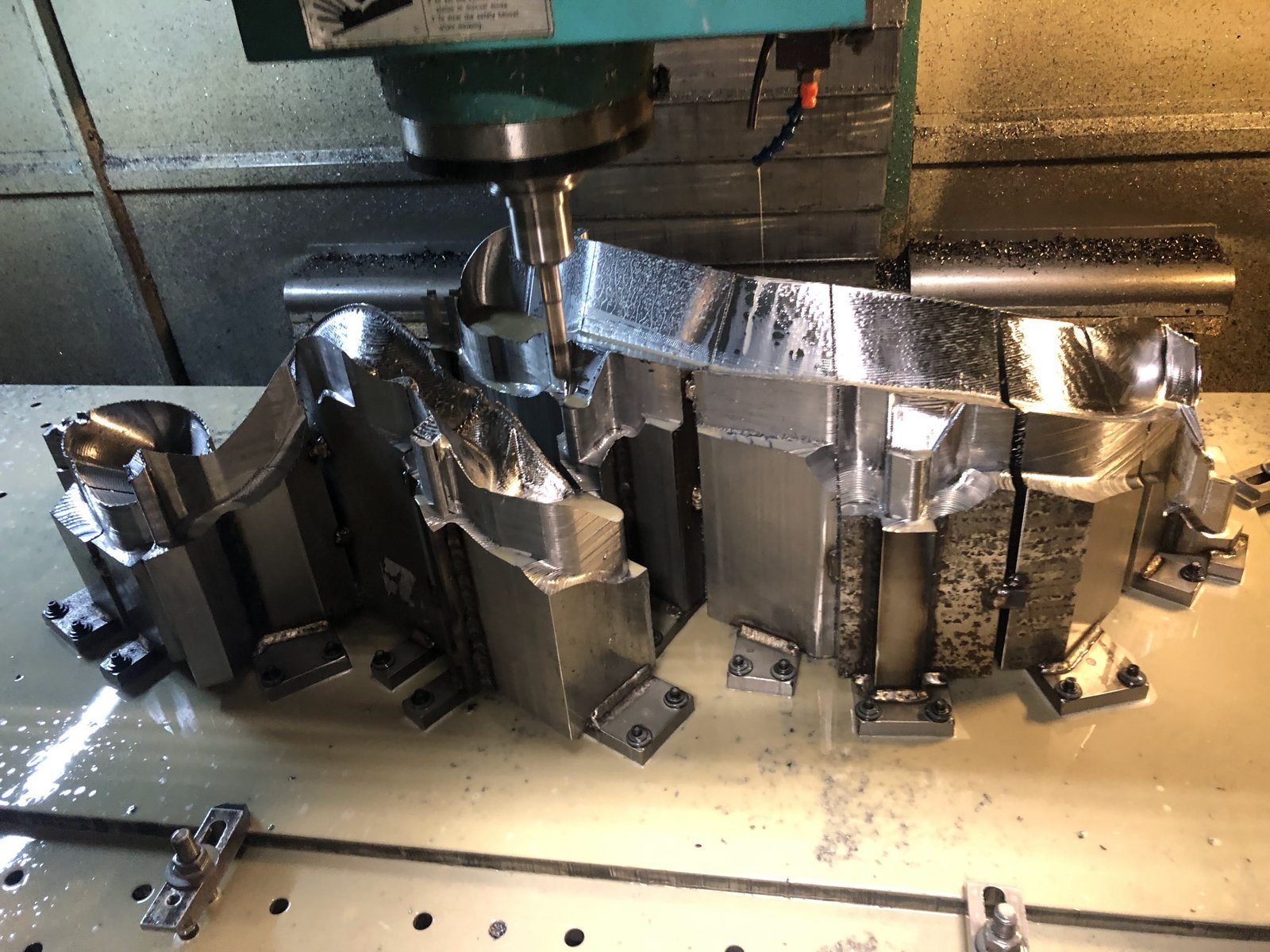

Cutter machining a contoured form on a large welded base

CNC Machining & Engineering

5-, 4- and 3-axis milling, Class A surface machining and hard milling of hardened tool steels, plus CNC turning, Wire EDM and grinding, programmed in house with CAD/CAM up to 5-axis.

Learn more →

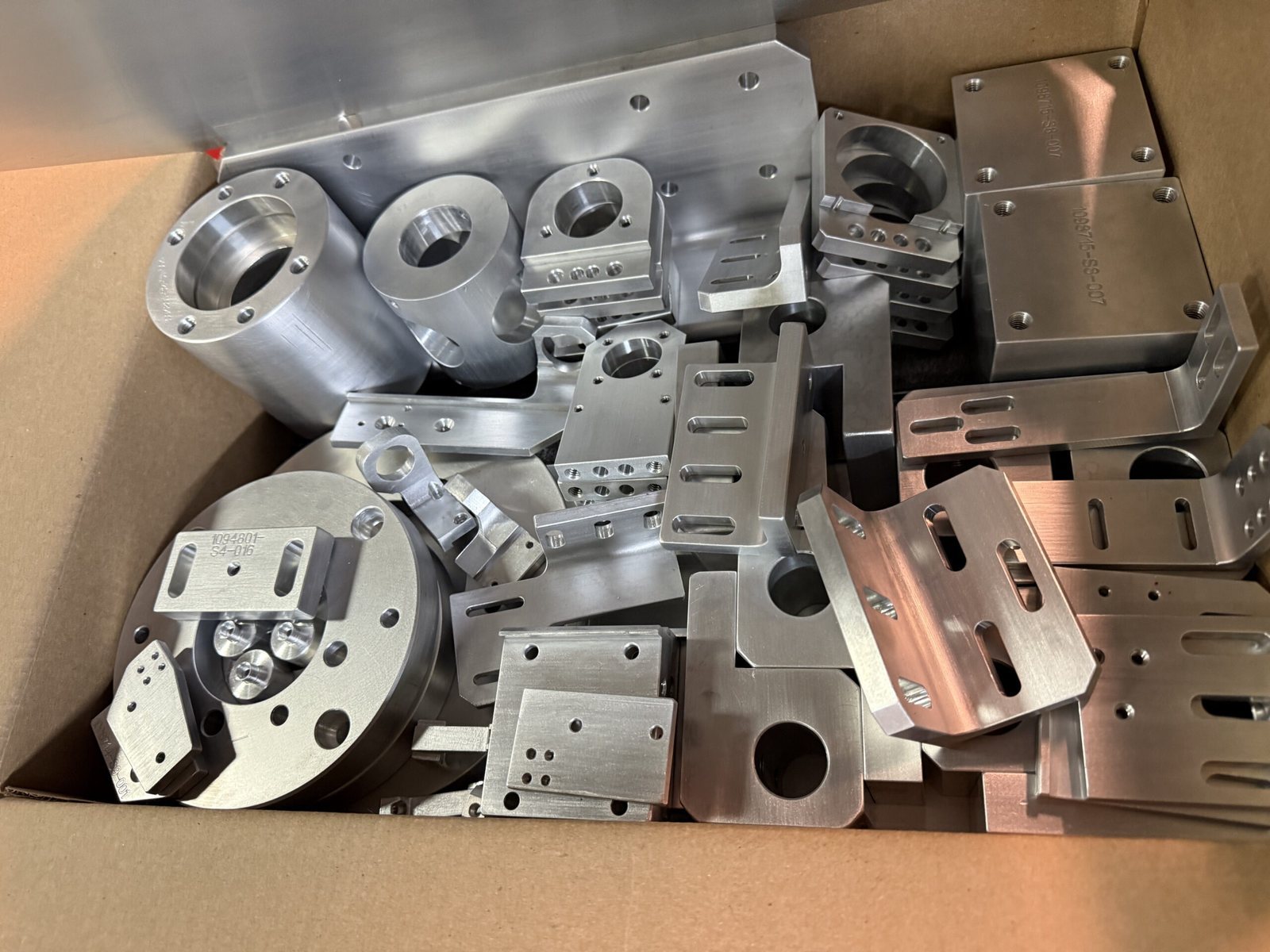

Batch of precision machined parts, packed for delivery

Batch Production

Batch and repeat production of high-tolerance precision parts, held to tolerances as tight as 8 µm (0.008 mm).

Learn more →

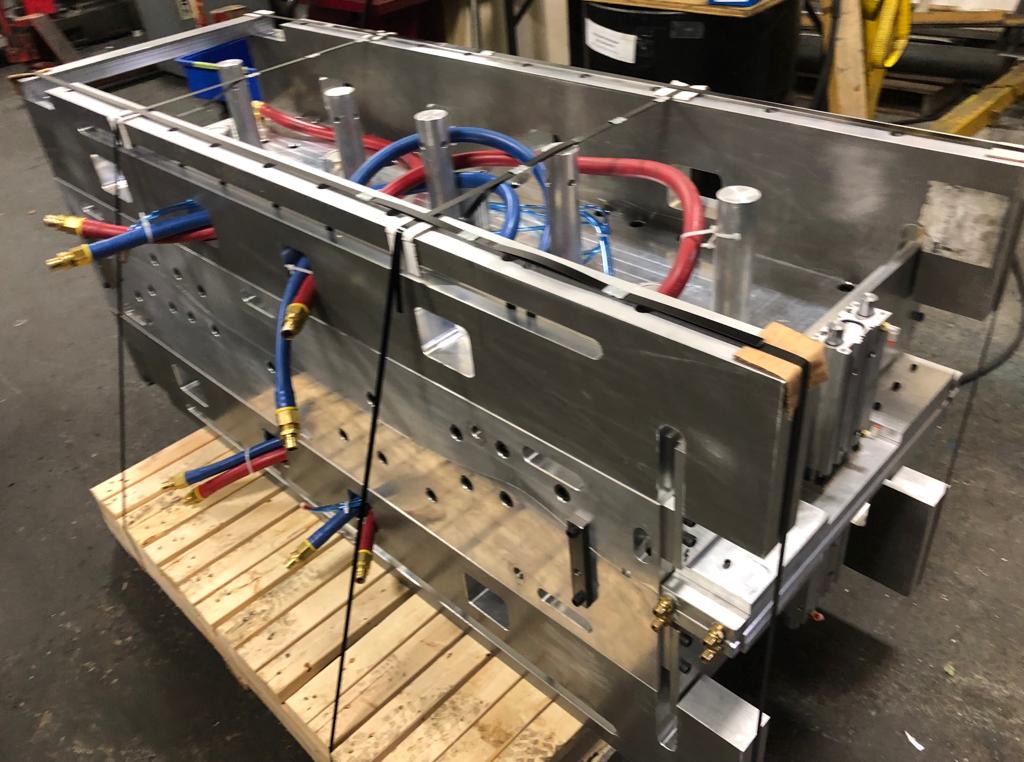

Mould with water lines plumbed, ready to ship

Moulds

Complete mould machining, spotting and assembly, cavity finishing and Class A surfaces, with AMPCO and P20 slides and inserts.

Learn more →

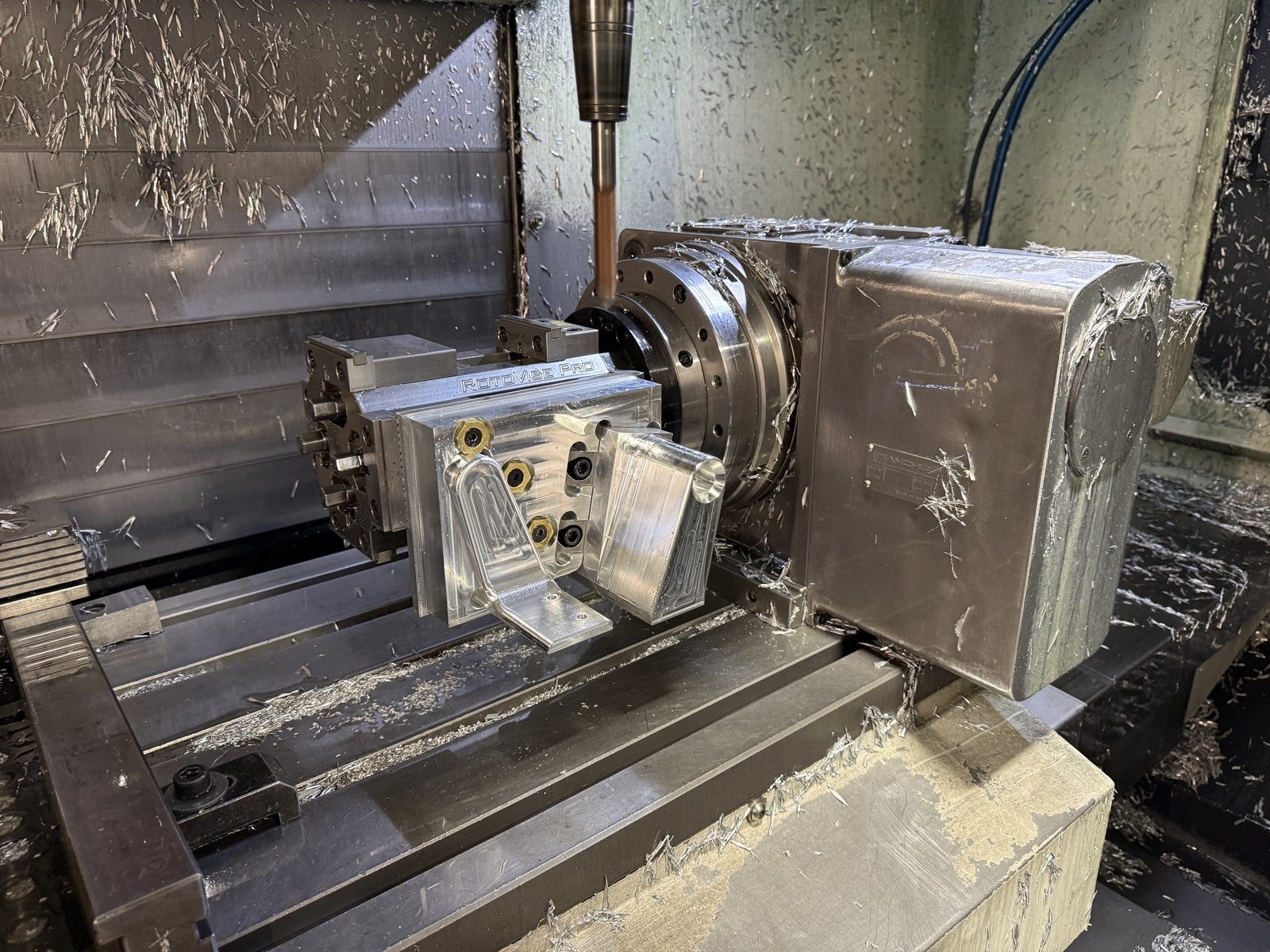

Custom two-sided production fixture on the rotary table

Fixtures, Guillotines & SPMs

Custom 3-, 4- and 5-axis CNC machining fixtures, weld and production fixtures, guillotines and special purpose machines (SPMs), designed and built in house to suit your process.

Learn more →

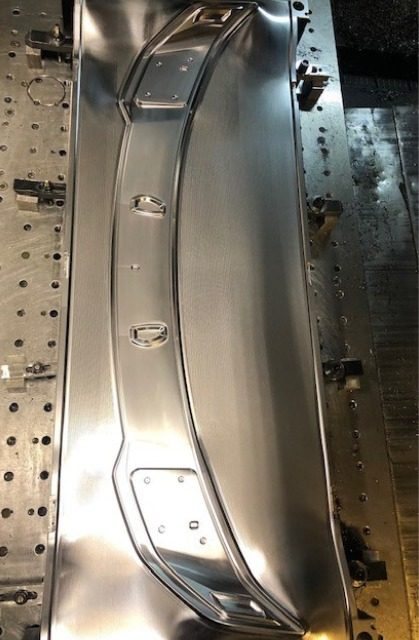

Polished Class A spoiler mould cavity
Why Superior Tool Tech

One shop from design to tryout, so nothing gets lost between suppliers.

Design, programming, machining, fitting and tryout happen under one roof in Woodbridge. That keeps lead times short and gives you one team accountable for the result.

Toolmaker-led

Run by tool & die professionals with 25+ years of hands-on experience.

Engineering in house

3D design, reverse engineering and CAD/CAM programming up to 5-axis.

Three shifts

Machines run around the clock when your launch date needs it.

Clear updates

Photo progress reports every two weeks on die programs.

How a die program runs

From your part data to PPAP, with photo updates every two weeks.

  1. 01

    Design review

    We design from your part data or drawing and agree the design with you before build.

  2. 02

    Die design

    3D die design, strip layout and a full 2D detail package.

  3. 03

    Build

    Programming, machining, fitting and assembly in house.

  4. 04

    Tryout & PPAP

    Tryout parts for your scanning, PPAP samples, checking gauges and buy-off.

  5. 05

    Life of the tool

    Maintenance, repair, engineering changes and full refurbishment.

Recent work

From the shop floor

View all projects →

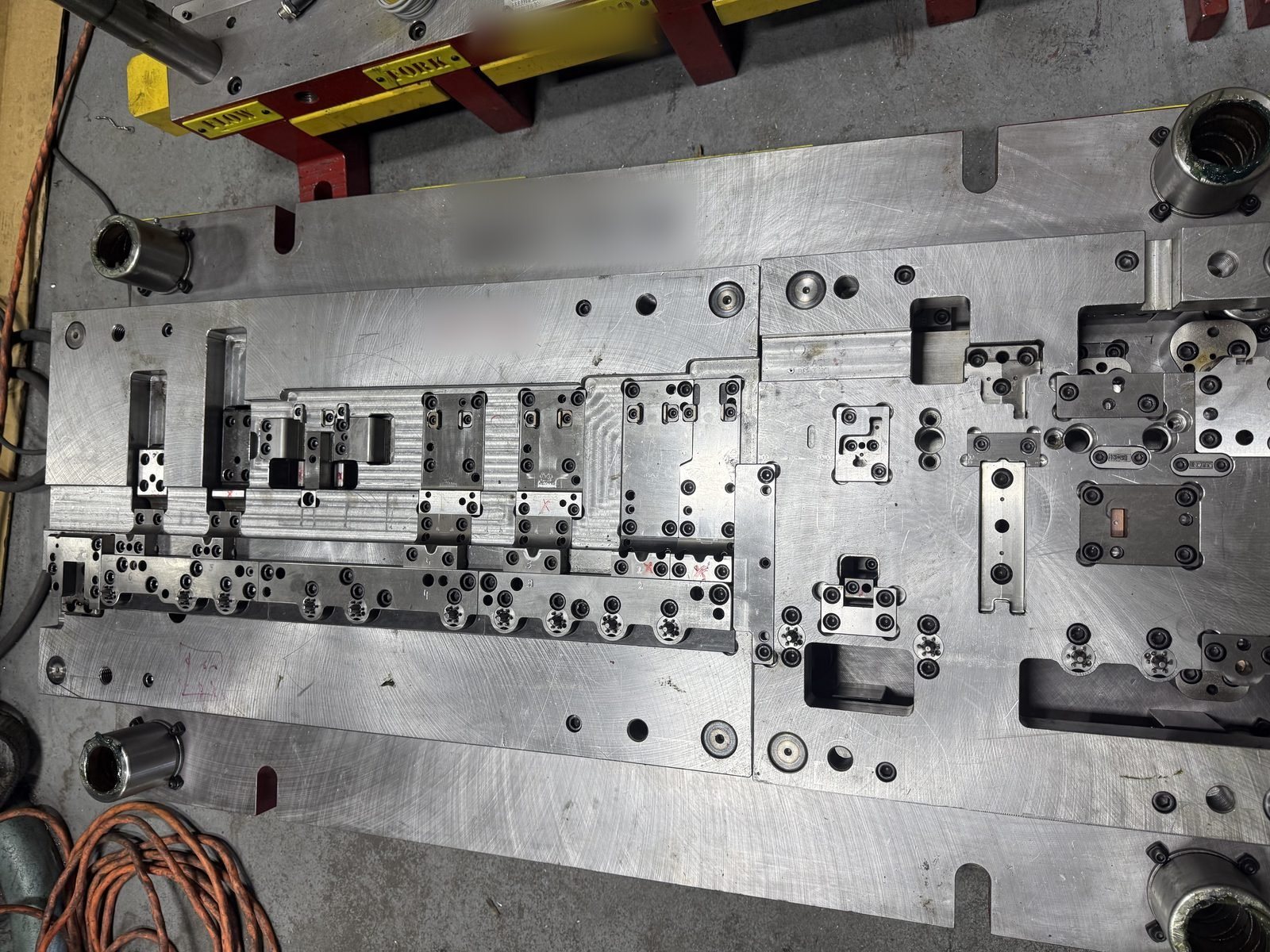

Progressive die lower half with forming stations
Progressive dieStations, inserts and pilots built and fitted in house

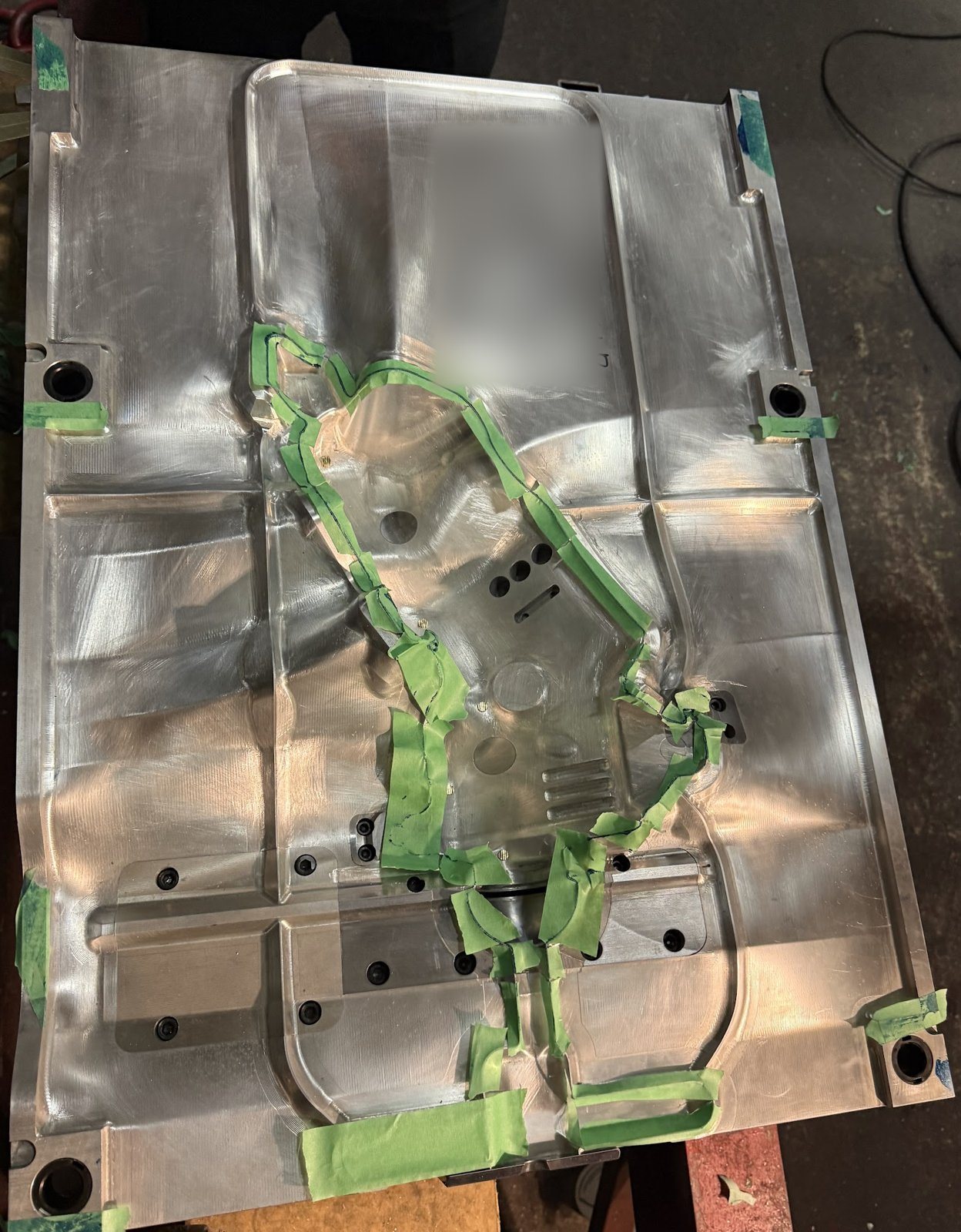

Large blow mould cavity with green tape along the spotted parting line
Mould spottingLarge blow mould spotted and taped before tryout

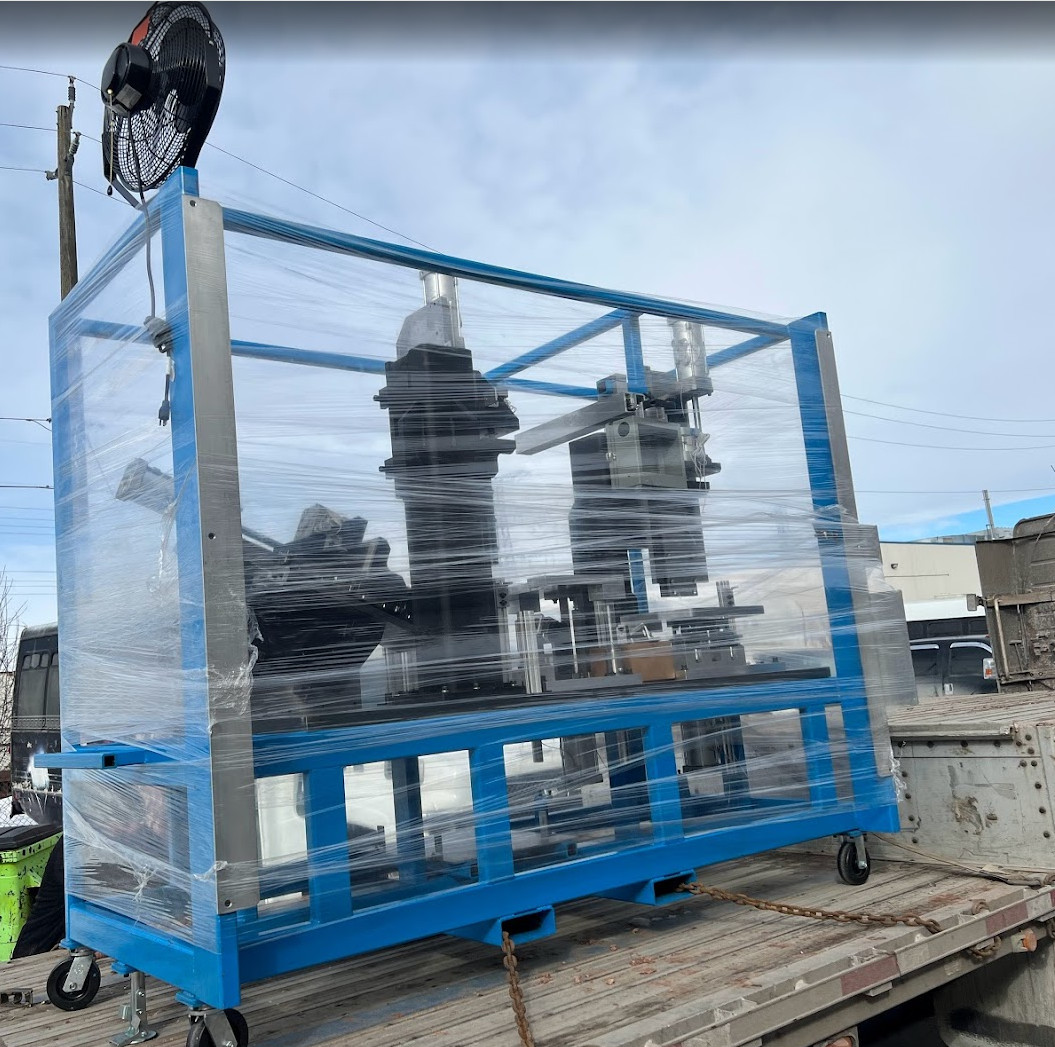

Special purpose machine on a truck
Special purpose machineDesigned, built and shipped as a complete guarded cell

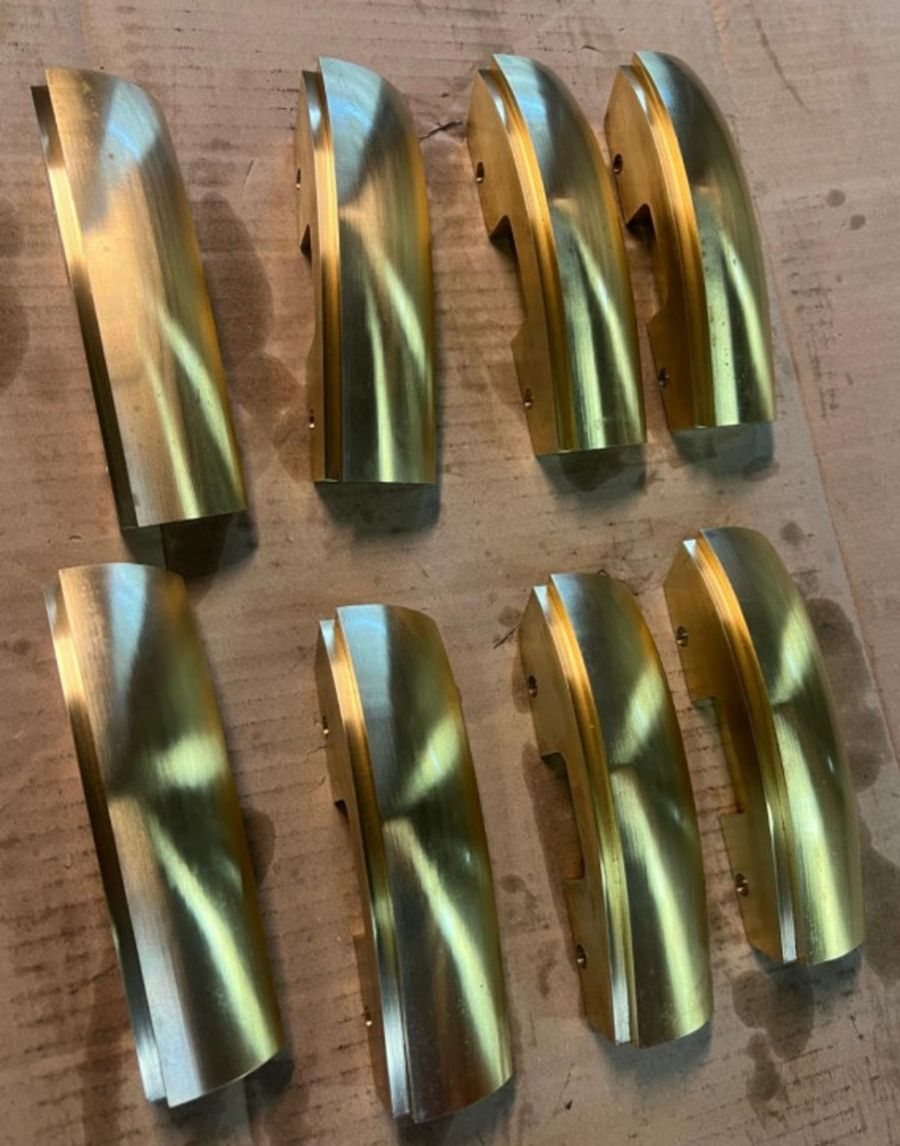

Repeat batch of contoured brass components
Batch productionA repeat batch of contoured brass parts
INDUSTRIES WE SERVE
AutomotiveAutomationIndustrial EquipmentGeneral ManufacturingTool & DieAerospaceRoboticsAgriculture
